Verified model facts
- Sensing method
- Retro-reflective with MSR function
- Sensing distance
- 100 mm to 4 m with E39-R1S reflector
- Output
- NPN open-collector output
- Connection
- Pre-wired, standard 2 m model

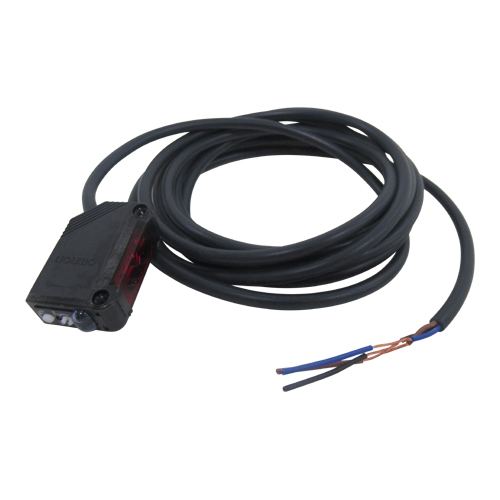

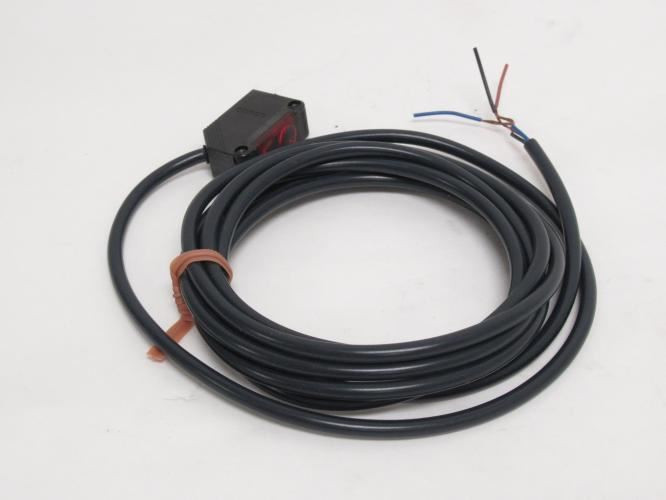

产品参考图 / Product reference images
Product images are for appearance reference only; they do not confirm the exact model label, current stock, original supply, lead time, warranty or the current lot. Technical and E3Z-series artwork is for identification only. Confirm the E3Z-R61 label, reflector and cable before quotation.
Photoelectric sensor
Omron E3Z-R61 Price, Specs & Replacement in India
Retro-reflective photoelectric sensor with MSR: verified 100 mm–4 m with E39-R1S reflector, NPN output and standard 2 m pre-wired cable.
Current availabilityConfirmed after quantity
Lead timeConfirmed after destination
Quotation inputReflector + quantity + required date
Independent supplier. No live-stock or MOQ claim is made; original supply and a compatible route are separated and checked before quotation.
E3Z-R61
E3Z-R61 exact-model technical and quotation checkpoint
Typical application fit
Reflector-based presence detection on conveyors, packaging and material handling where the E39-R1S reflector, alignment and 100 mm–4 m range match the installation.
Original / compatible boundary
Original availability is not assumed. A compatible model is proposed only after sensing method, output, voltage, cable or connector, mounting and the installed application are checked.

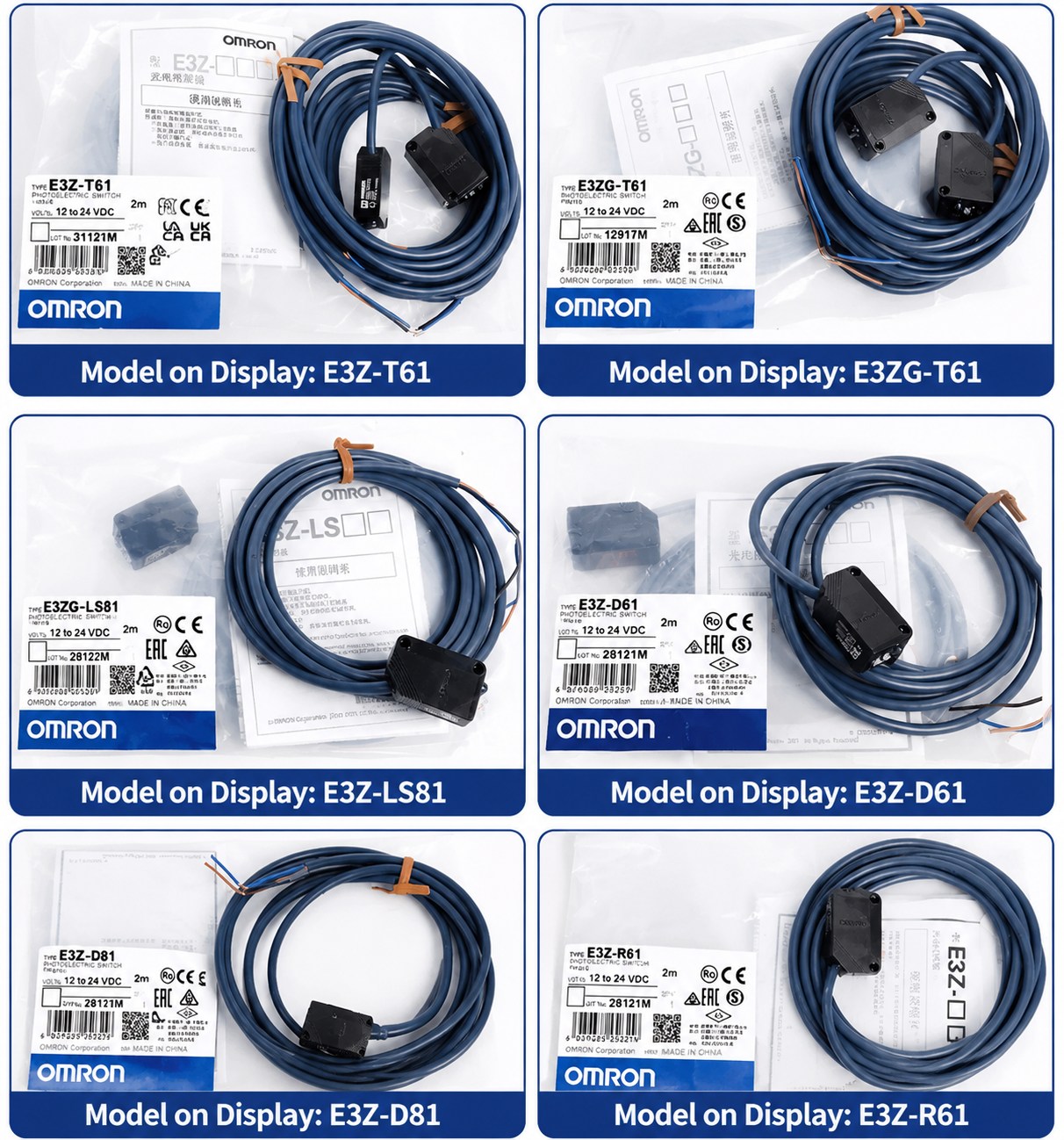

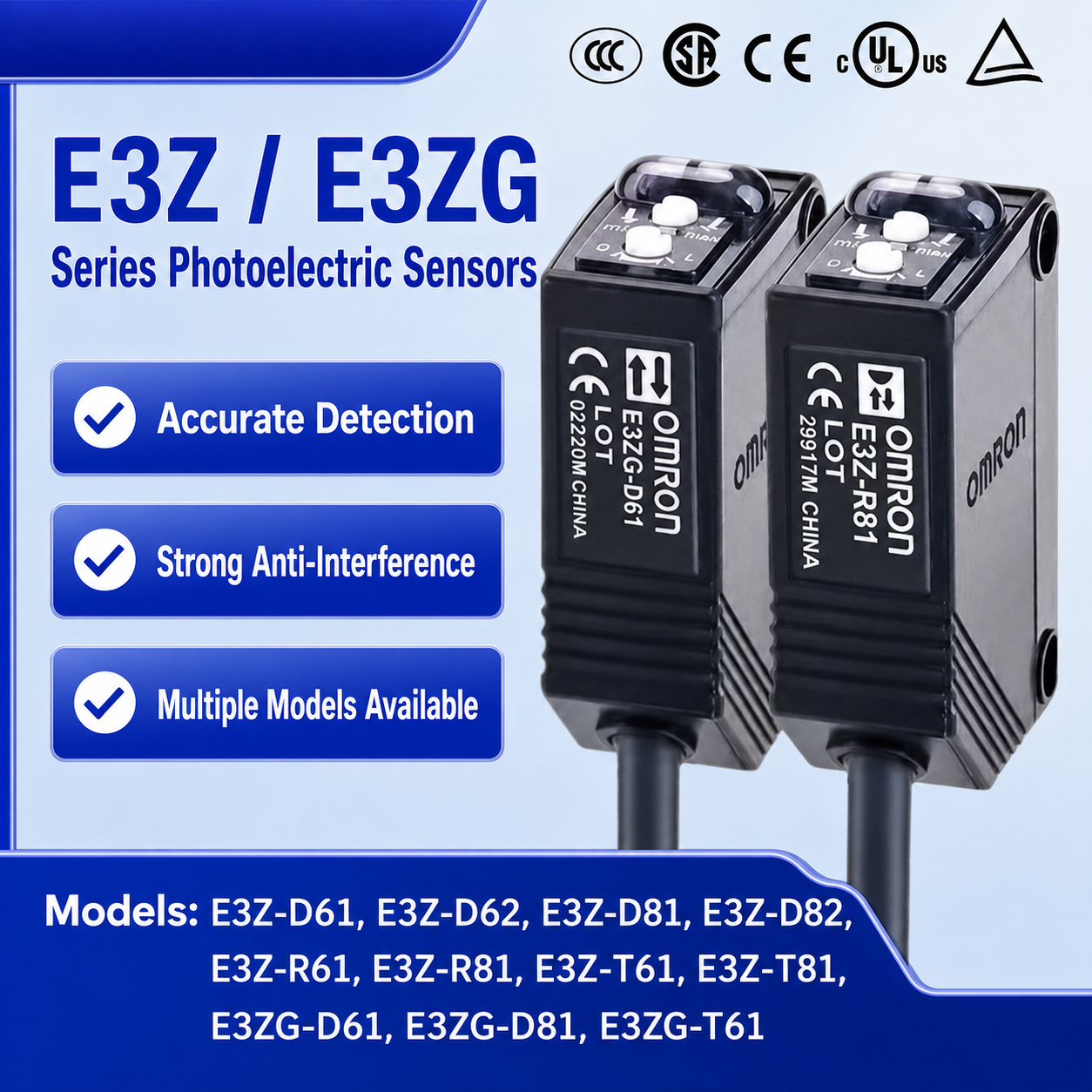

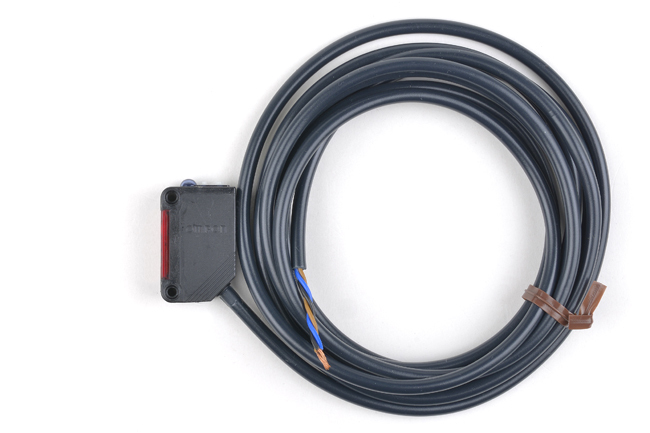

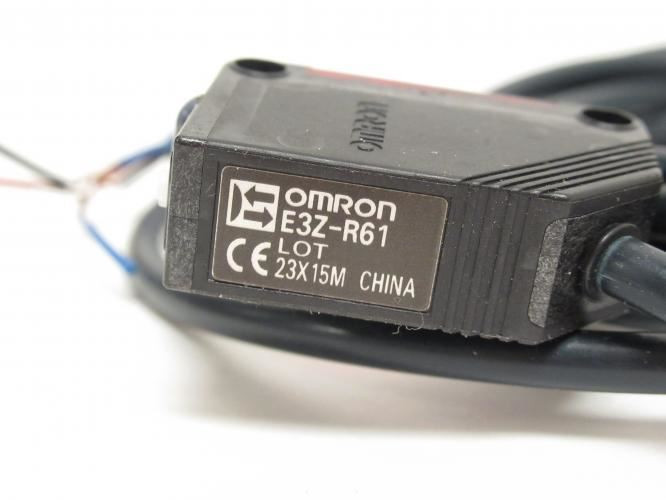

Product, label and packaging references
4 screened product-reference images are shown for identification. They are not J&V-owned stock, current-lot, authenticity, warranty or delivery proof.
Send for quotation
- Quantity
- Delivery city / state and postcode
- Required delivery date
- Complete label and installed photo
- Reflector photo and distance
Manufacturer technical reference

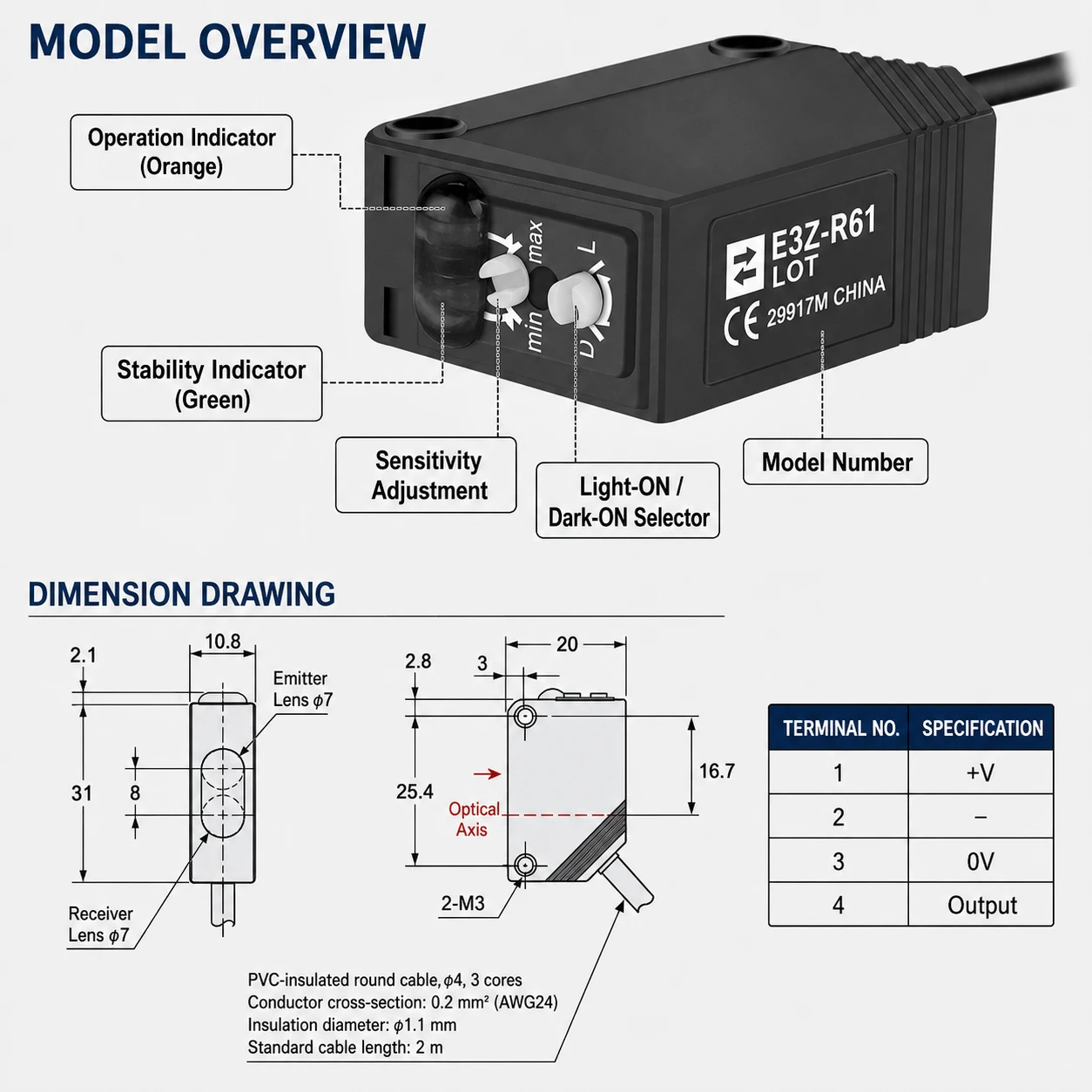

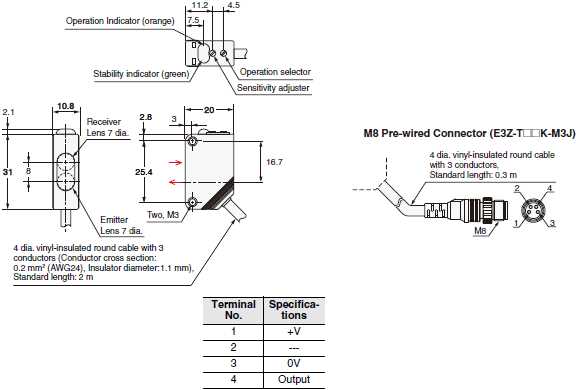

E3Z-R61 dimensions and wiring reference
Dimensions and wiring are manufacturer references for model verification and installation review. Confirm the complete suffix and actual connection before quotation or replacement. They do not prove J&V stock, physical inspection, original supply, compatibility, lead time or warranty.
Warehouse, packing, inspection and application cards are sourcing references. Company registration links to legal business information; it is not an exact-product certificate or proof of current stock.
Warehouse reference only; current availability is confirmed before quotation.
Packing method and export preparation are confirmed before shipment.
Model marking and supplied details are checked before shipment.
Application fit must be confirmed from the installed conditions.
Company RegistrationRegistered since 2017. View the legal name, registration code and business scope.
Checked the sourcing evidence?Send the E3Z-R61 label, reflector details, quantity, delivery city and required date for price and lead-time checking.
Ask Price & Lead Time on WhatsApp
| Parameter | Value |
|---|---|
| Model | E3Z-R61 |
| Product type | Compact photoelectric sensor with built-in amplifier |
| Sensing method | Retro-reflective with MSR function |
| Sensing range | 100 mm to 4 m with E39-R1S reflector |
| Output | NPN open-collector output |
| Parameter | Value |
|---|---|
| Connection | Pre-wired, standard 2 m model |
| Supply voltage | 12 to 24 VDC ±10% |
| Protection | IP67 (IEC) |
| Installation | Retro-reflective sensing; reflector required |
| Response | Operate or reset: 1 ms max. |
For Omron E3Z-R61 or E3Z-R61 2M, send the label photo, installed photo, reflector photo if available, quantity and country. J&V checks whether the safer quote path is compatible replacement, original supply, or another E3Z type. WhatsApp quote path: E3Z-R61 model confirmation, reflector style check, original or replacement option, price, stock status and lead time.
