Can J&V quote a replacement for E3Z-T61?

Yes. J&V can check Omron E3Z-T61 after receiving the label photo, installed photo, electrical output, voltage, connector or cable details, quantity and destination country.

Can J&V check price, stock and lead time for E3Z-T61?

Yes. Send both unit labels for E3Z-T61, quantity, delivery city or state, required date, preferred quote currency and invoice requirement. J&V checks price, current availability, lead time and replacement risk before quotation.

Is E3Z-T61 always interchangeable with another sensor?

No. Interchangeability depends on output type, voltage, sensing distance, housing, connector, cable direction and the real machine environment. For machine-critical replacements, sample testing is recommended.

What photos should I send for E3Z-T61?

Send one clear label photo, one installed photo showing mounting and cable direction, and any connector or wiring photo. These details reduce wrong-model risk before quotation.

产品参考图 / Product reference images

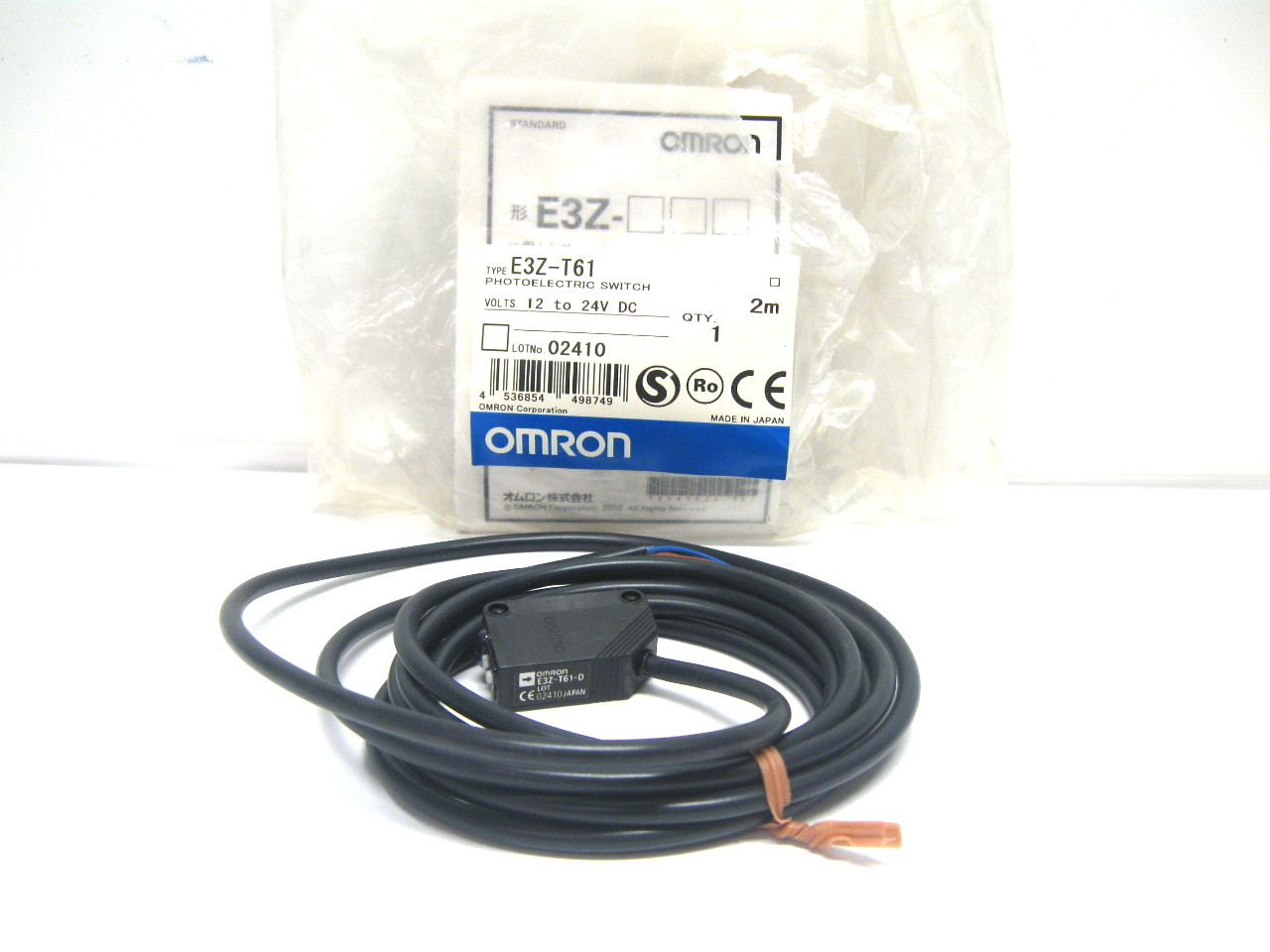

E3Z-T61 product reference image; not current-stock, current-lot, original-supply, lead-time or warranty proof

The gallery includes an edited compatible-supply reference and an independently recreated specification reference based on official Omron E3Z data. Neither proves current original Omron E3Z-T61 stock. Original availability and technical fit are confirmed before quotation.

Photoelectric sensor

Omron E3Z-T61 Price, Specs & Replacement in India

Name: Omron E3Z-T61 quote and replacement check in India
Brand: Omron

Through-beam emitter/receiver set for long-range presence detection: verified 15 m range, NPN open-collector output and standard 2 m pre-wired cable.

AvailabilityChecked before quote

Lead timeConfirmed by quantity

Quotation inputFull set + quantity + required date

Ask E3Z-T61 Price & Availability

Emitter + receiver checkOriginal / compatible separatedLead time confirmed after quantity

Independent industrial supplier. No live-stock or MOQ claim is made; confirm both emitter and receiver before any original or compatible quote.

E3Z-T61

E3Z-T61 exact-model technical and quotation checkpoint

Verified model facts

Sensing method: Through-beam
Sensing distance: 15 m
Output: NPN open-collector output
Connection: Pre-wired, standard 2 m model

Typical application fit

Long-range through-beam presence or position detection between a separate emitter and receiver. Both units, alignment, wiring and the 15 m requirement must be confirmed.

Original / compatible boundary

Original availability is not assumed. A compatible model is proposed only after sensing method, output, voltage, cable or connector, mounting and the installed application are checked.

Product, label and packaging references

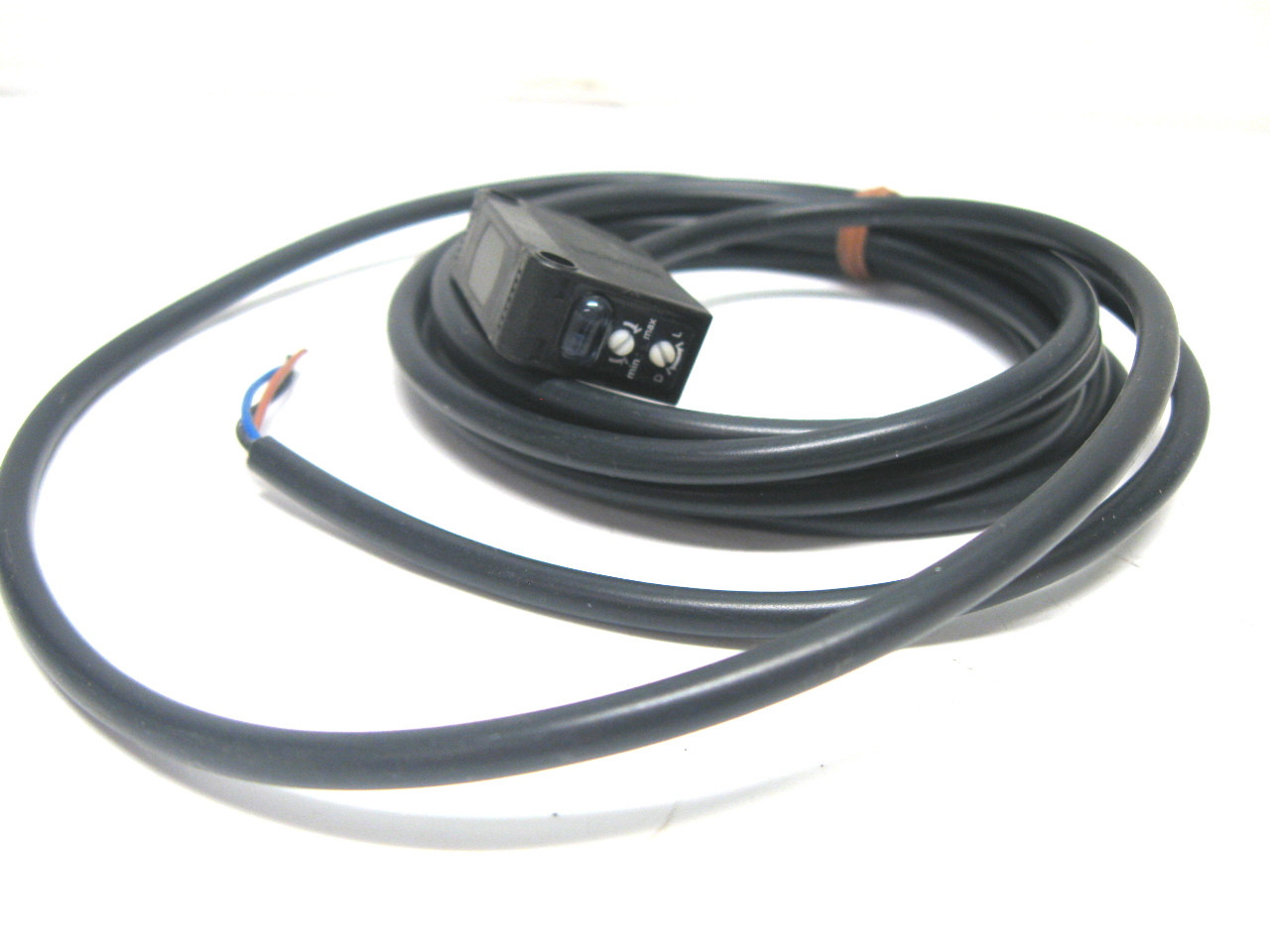

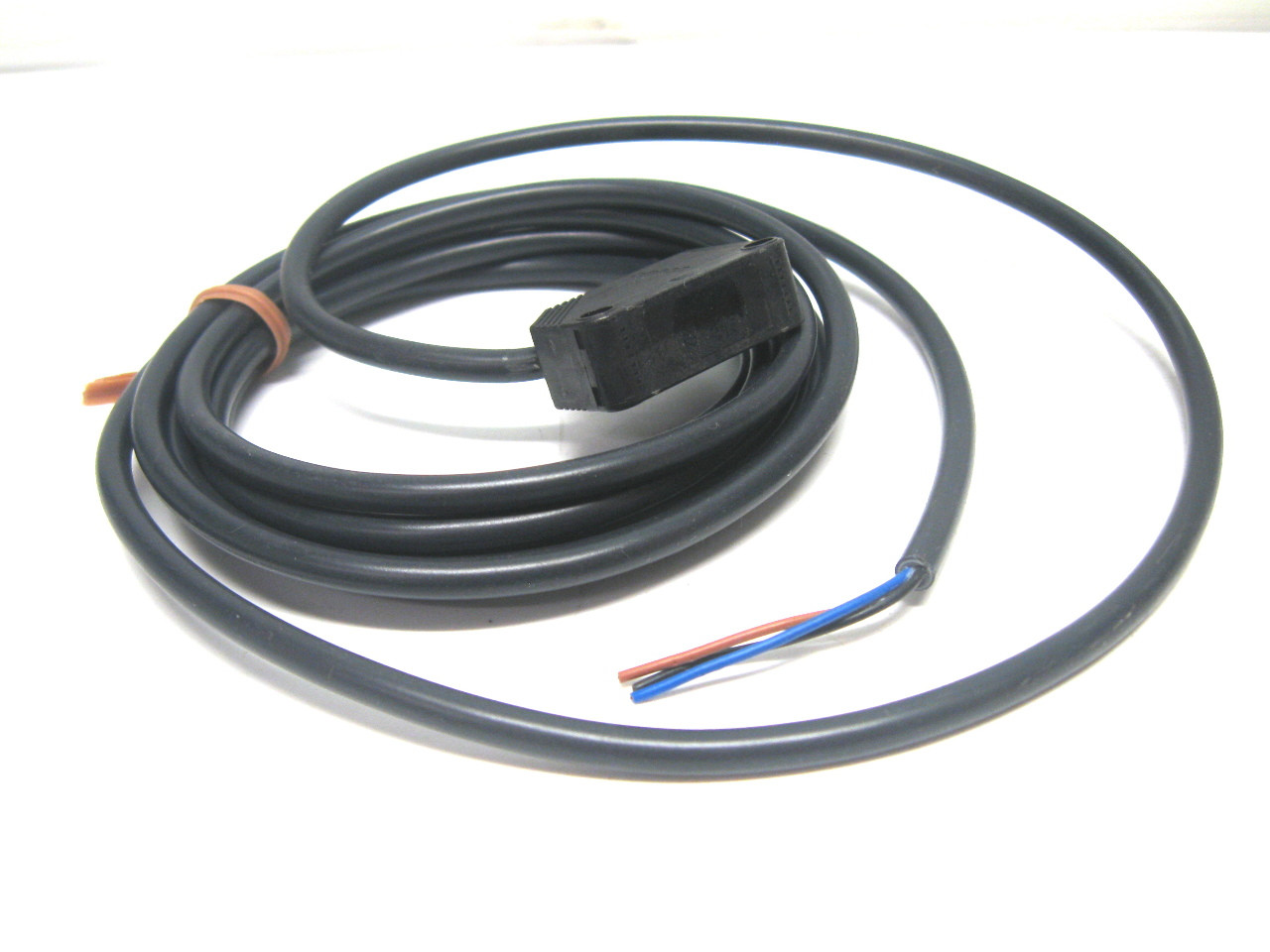

3 screened product-reference images are shown for identification. They are not J&V-owned stock, current-lot, authenticity, warranty or delivery proof.

Send for quotation

Quantity
Delivery city / state and postcode
Required delivery date
Complete label and installed photo
Both emitter and receiver labels

Manufacturer technical reference

E3Z-T61 dimensions and wiring reference

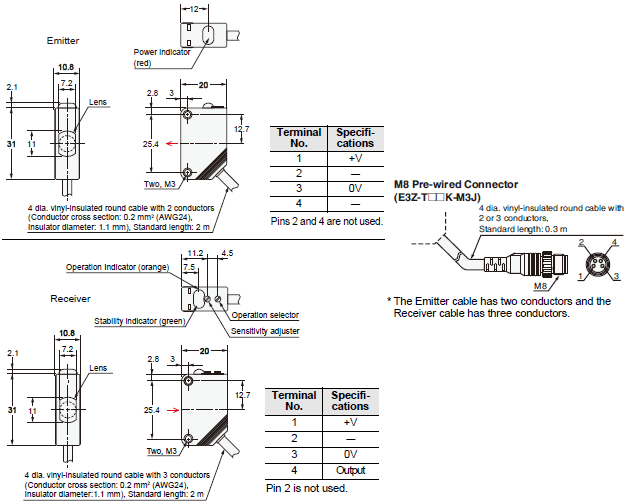

E3Z-T61 Dimensions reference — **Dimensions reference**Official dimensions for the E3Z-T61 pre-wired emitter and receiver set.Official manufacturer source

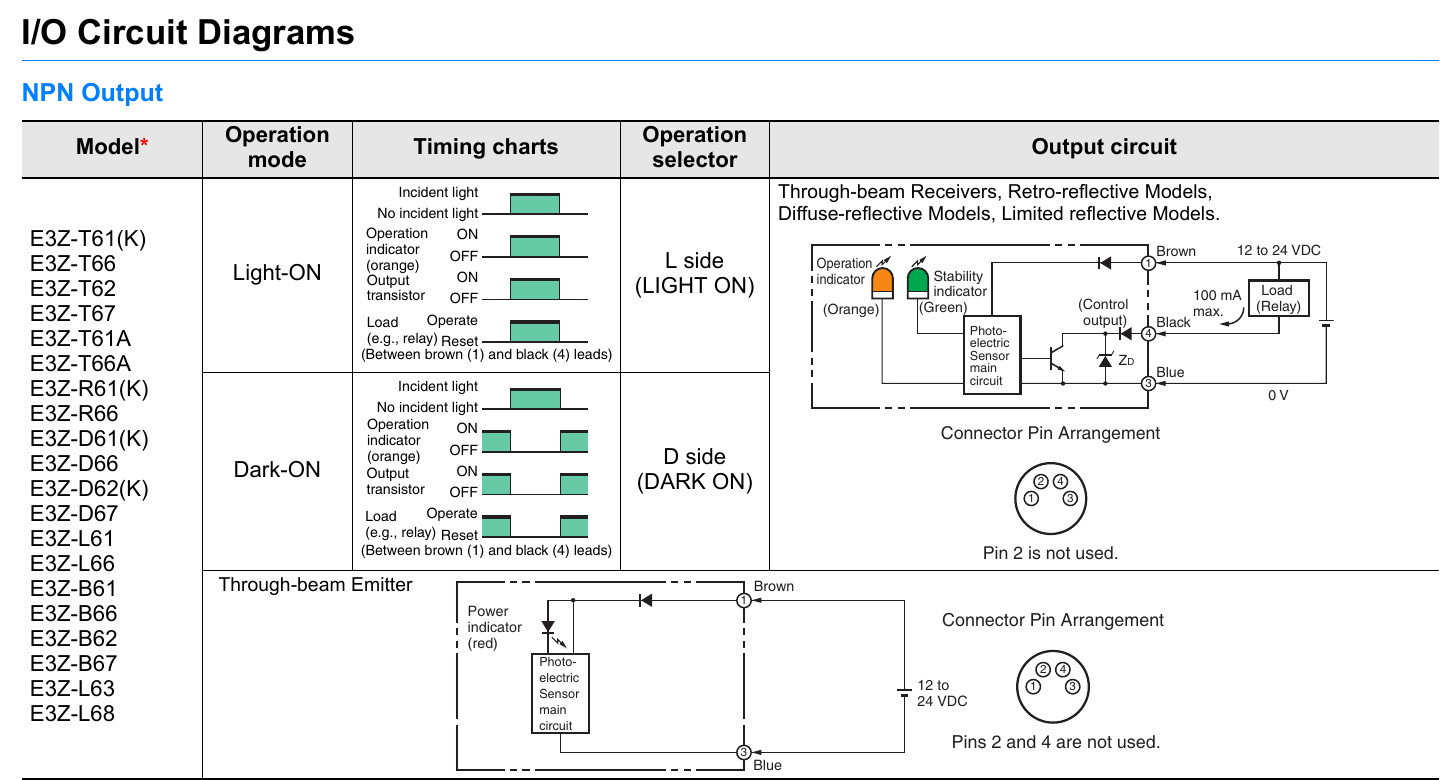

E3Z-T61 Wiring reference — **Wiring reference**Official NPN I/O circuit table explicitly listing E3Z-T61, including the receiver output circuit and the two-wire emitter supply circuit.Official manufacturer source

Dimensions and wiring are manufacturer references for model verification and installation review. Confirm the complete suffix and actual connection before quotation or replacement. They do not prove J&V stock, physical inspection, original supply, compatibility, lead time or warranty.

Warehouse, packing, inspection and application cards are sourcing references. Company registration links to legal business information; it is not an exact-product certificate or proof of current stock.

Company RegistrationRegistered since 2017. View the legal name, registration code and business scope.

Checked the sourcing evidence?Send both unit labels, quantity, delivery city, required date and installed photos. State the quote currency and invoice requirement. Ask Price & Lead Time on WhatsApp

Parameter	Value
Model	E3Z-T61
Product type	Compact photoelectric sensor with built-in amplifier
Sensing method	Through-beam
Sensing range	15 m
Output	NPN open-collector output

Parameter	Value
Connection	Pre-wired, standard 2 m model
Supply voltage	12 to 24 VDC ±10%
Protection	IP67 (IEC)
Installation	Through-beam emitter and receiver set
Response	Operate or reset: 1 ms max.
