Verified model facts
- Sensing method
- Inductive, flush installation
- Sensing distance
- Rated operating distance 5 mm; assured operating distance 0 to 4.05 mm
- Output
- PNP, normally open, 3-wire DC
- Connection
- M12 x 1, 4-pin device connector

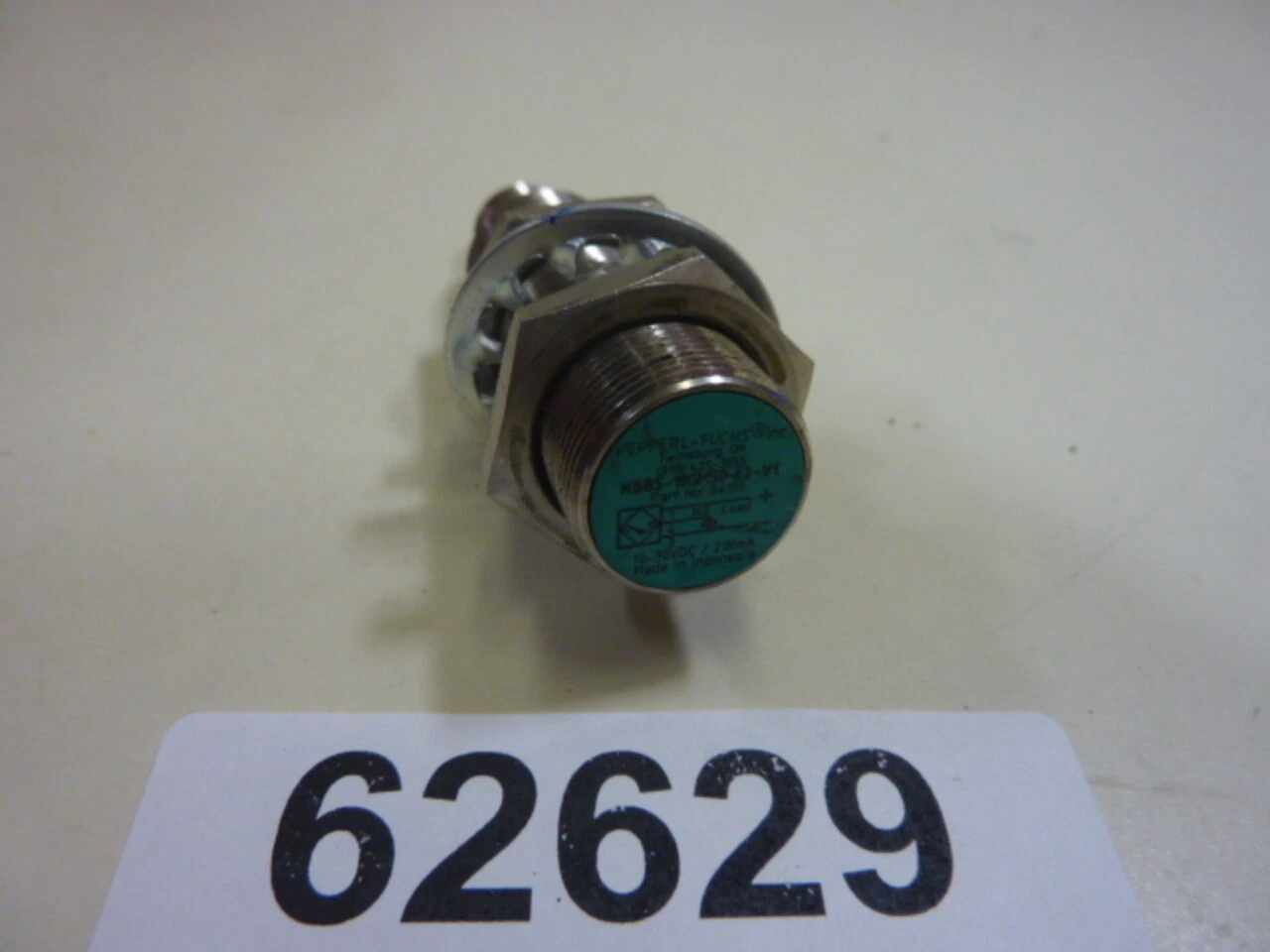

产品参考图 / Product reference images
Images are NBB5-18GM50-E2-V1 product references only. They do not confirm J&V-owned or current stock, the current lot, original supply, lead time or warranty. Confirm the complete label, connection and application before quotation.
Inductive proximity sensor
NBB5-18GM50-E2-V1 PNP 5 mm M12 Price in India
M18 x 1 flush inductive sensor for metal detection: verified 5 mm rated distance, PNP normally open output and M12 4-pin connector.
Stock statusCheck availability
Lead timeConfirm by quantity
ShippingDelivery to India
Send quantity, delivery city or state, required date, complete label and connector photo. The V1 suffix must be checked before quotation.
Independent supplier. No live-stock or MOQ claim is made; original supply and a compatible route are checked separately against output, connector and mounting.
NBB5-18GM50-E2-V1
NBB5-18GM50-E2-V1 exact-model technical and quotation checkpoint
Typical application fit
Metal-target detection where an M18 flush inductive sensor, 5 mm rated distance, PNP NO output and M12 4-pin connector match the machine.
Original / compatible boundary
Original availability is not assumed. A compatible model is proposed only after sensing method, output, voltage, cable or connector, mounting and the installed application are checked.

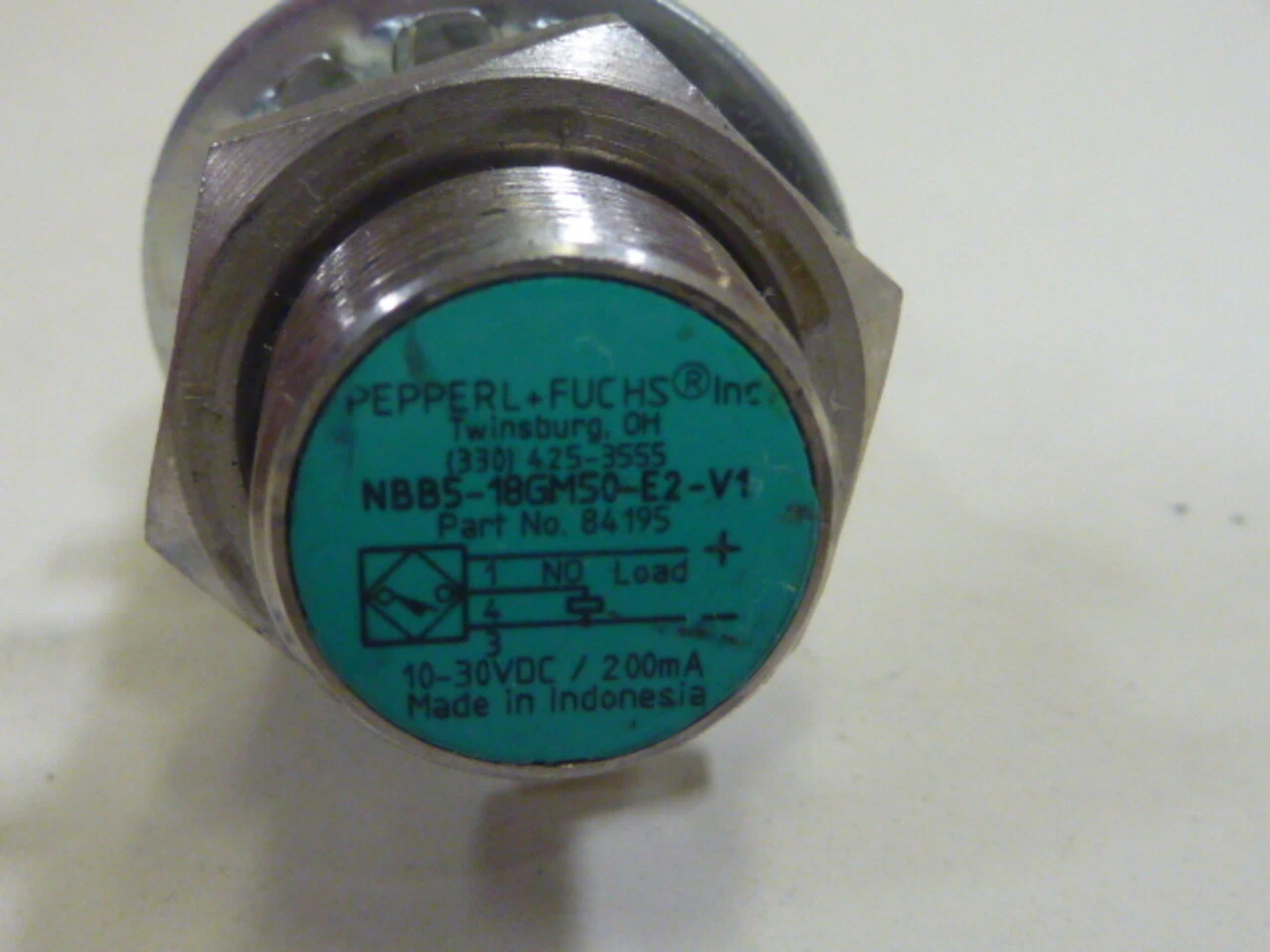

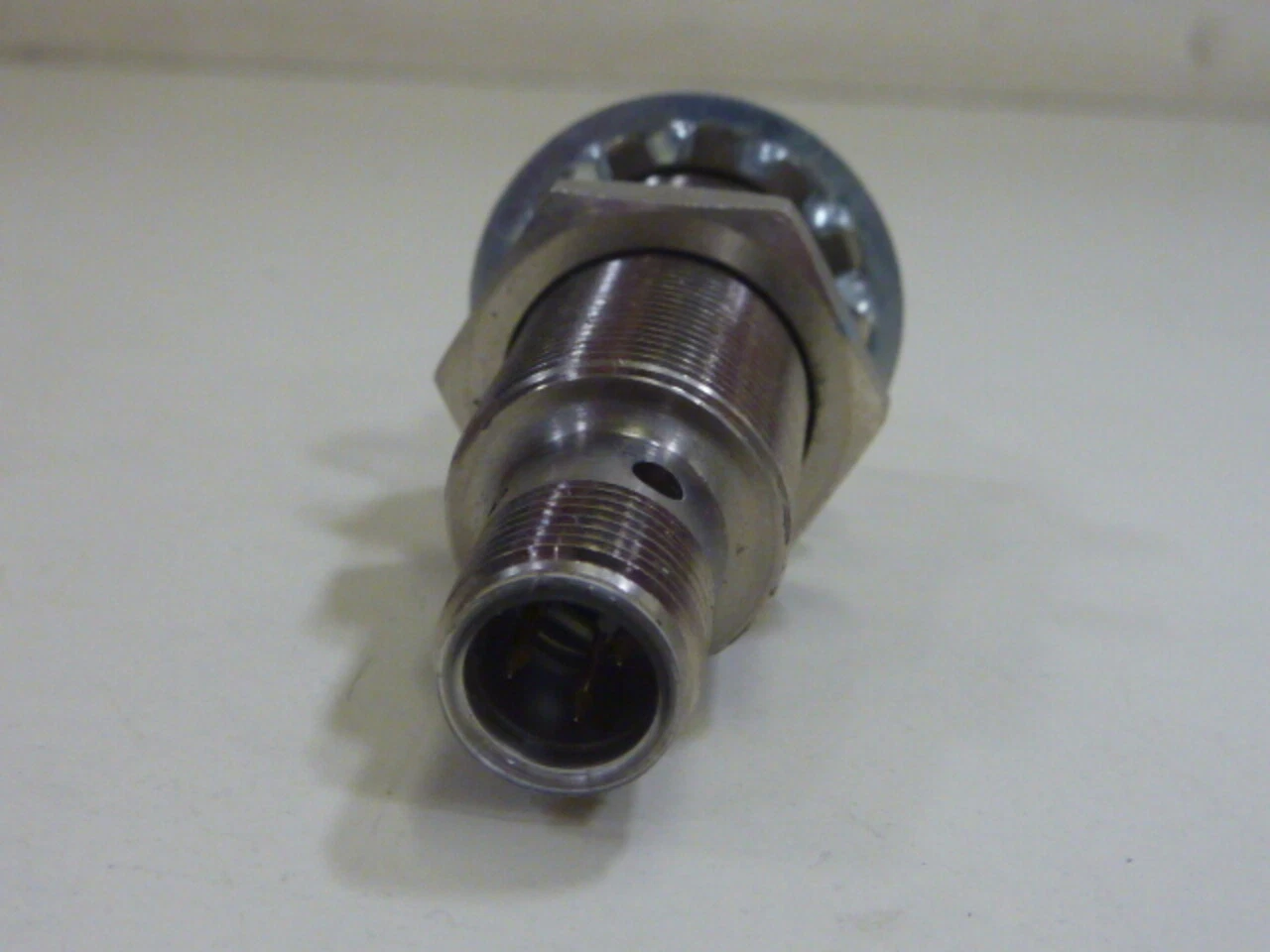

Product, label and packaging references
3 screened product-reference images are shown for identification. They are not J&V-owned stock, current-lot, authenticity, warranty or delivery proof.
Send for quotation
- Quantity
- Delivery city / state and postcode
- Required delivery date
- Complete label and installed photo
- M12 connector photo and pinout
Warehouse, packing, inspection and application cards are sourcing references. Company registration links to legal business information; it is not an exact-product certificate or proof of current stock.
Warehouse reference only; current availability is confirmed before quotation.
Packing method and export preparation are confirmed before shipment.
Model marking and supplied details are checked before shipment.
Application fit must be confirmed from the installed conditions.
Company RegistrationRegistered since 2017. View the legal name, registration code and business scope.
Checked the sourcing evidence?Send the model, quantity and delivery city for a price and lead-time check.
Ask Price & Lead Time on WhatsApp
| Parameter | Value |
|---|---|
| Model | NBB5-18GM50-E2-V1 |
| Product type | Inductive sensor |
| Sensing method | Inductive, flush installation |
| Sensing range | Rated operating distance 5 mm; assured operating distance 0 to 4.05 mm |
| Output | PNP, normally open, 3-wire DC |
| Parameter | Value |
|---|---|
| Connection | M12 x 1, 4-pin device connector |
| Supply voltage | 6 to 36 VDC |
| Protection | IP65 / IP66 / IP67 / IP68 / IP69 |
| Installation | Flush M18 x 1 threaded mounting with nuts |
| Response | Switching frequency 0 to 1950 Hz |
For Pepperl+Fuchs NBB5-18GM50-E2-V1, send the label photo, installed photo, V1 connector photo, quantity and country. J&V checks the E2-V1 suffix, body, connector and replacement risk before quoting. WhatsApp quote path: confirm NBB5-18GM50-E2-V1 suffix, V1 connector, E2 output, replacement option, price, stock status and lead time.
