Verified model facts
- Sensing method
- Adjustable range reflective (small spot)
- Sensing distance
- 2 to 50 mm with white non-glossy paper; adjustable range 20 to 50 mm
- Output
- NPN open-collector transistor
- Connection
- 4-core cable, 2 m
产品参考图 / Product reference images
Images are CX-441 product references only. They do not confirm J&V-owned or current stock, the current lot, original supply, lead time or warranty. Confirm the complete label, connection and application before quotation.
Photoelectric sensor
Panasonic CX-441 NPN 2–50 mm Price & Replacement in India
Adjustable-range small-spot reflective sensor: verified 2–50 mm reference range with white non-glossy paper, NPN output and 2 m 4-core cable.
Stock statusCheck availability
Lead timeConfirm by quantity
ShippingDelivery to India
Supply option
Send quantity, delivery city or state, required date, complete label and target/distance details for a checked quotation.
Independent supplier. No live-stock or MOQ claim is made; original supply and any compatible route are checked separately against target, range, wiring and mounting.
CX-441
CX-441 exact-model technical and quotation checkpoint
Typical application fit
Small-spot reflective detection of nearby parts where target colour, reflectivity, 2–50 mm reference range, NPN input and mounting angle are checked on the real machine.
Original / compatible boundary
Original availability is not assumed. A compatible model is proposed only after sensing method, output, voltage, cable or connector, mounting and the installed application are checked.

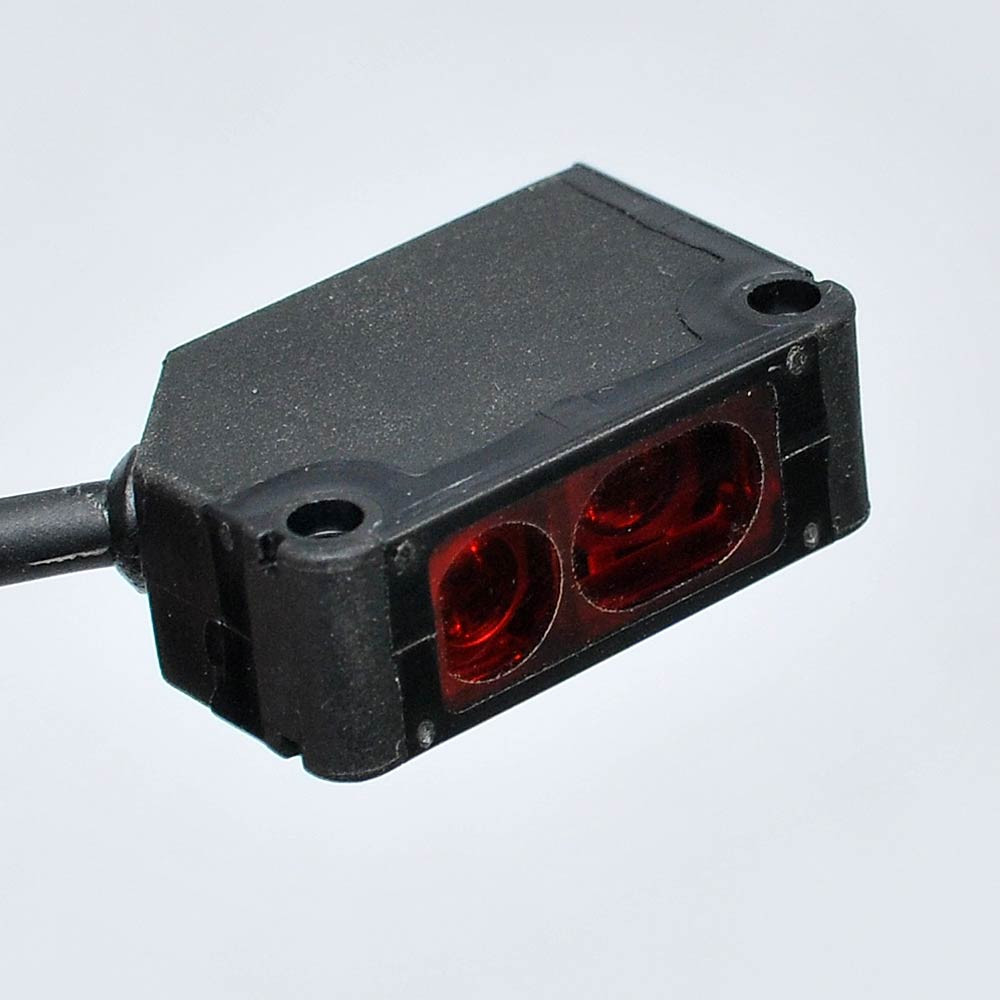

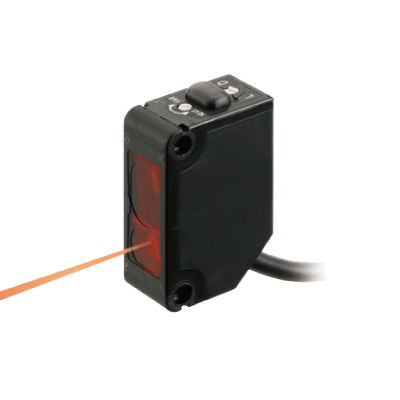

Product, label and packaging references
4 screened product-reference images are shown for identification. They are not J&V-owned stock, current-lot, authenticity, warranty or delivery proof.
Send for quotation
- Quantity
- Delivery city / state and postcode
- Required delivery date
- Complete label and installed photo
- Target colour, distance and mounting photo
Sourcing references

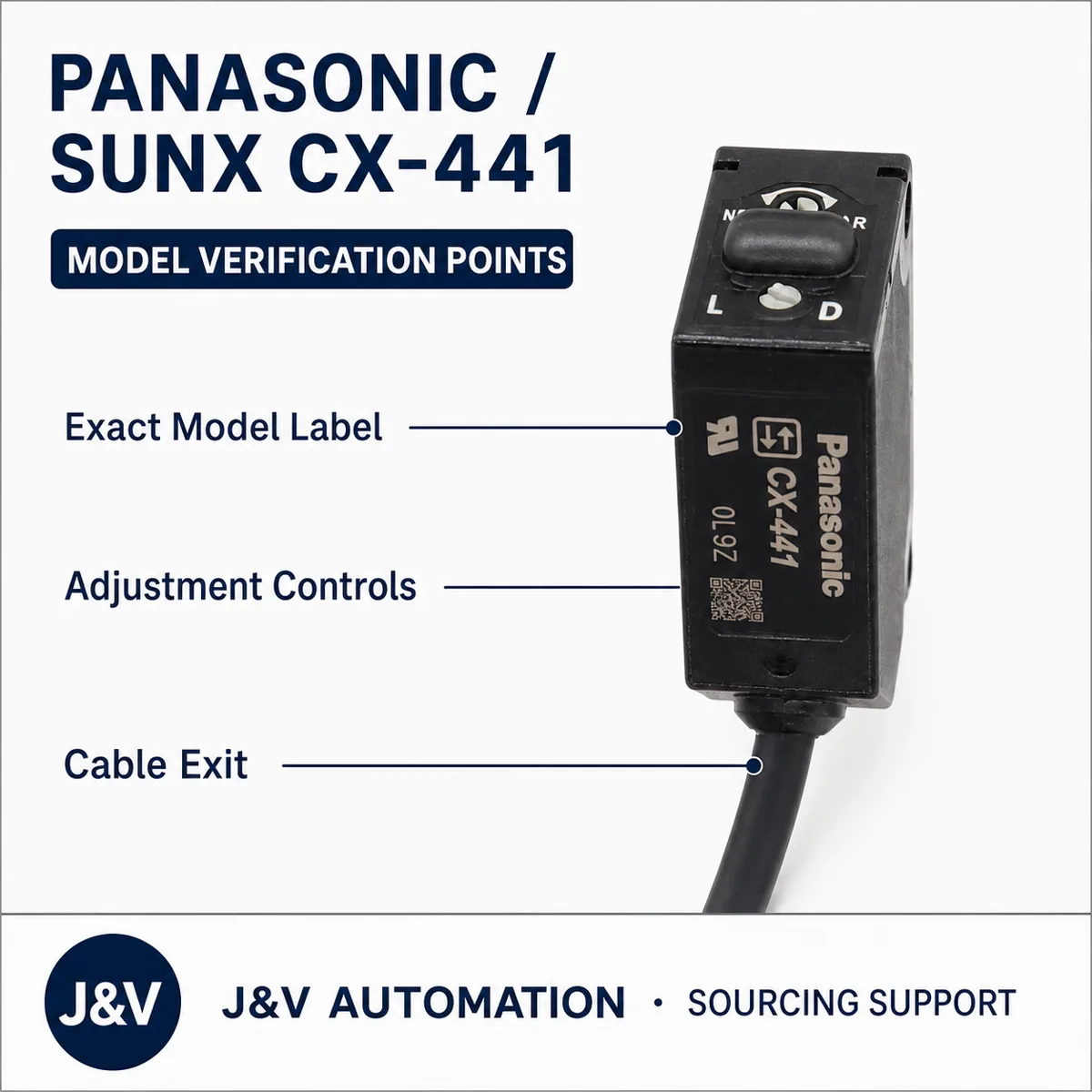

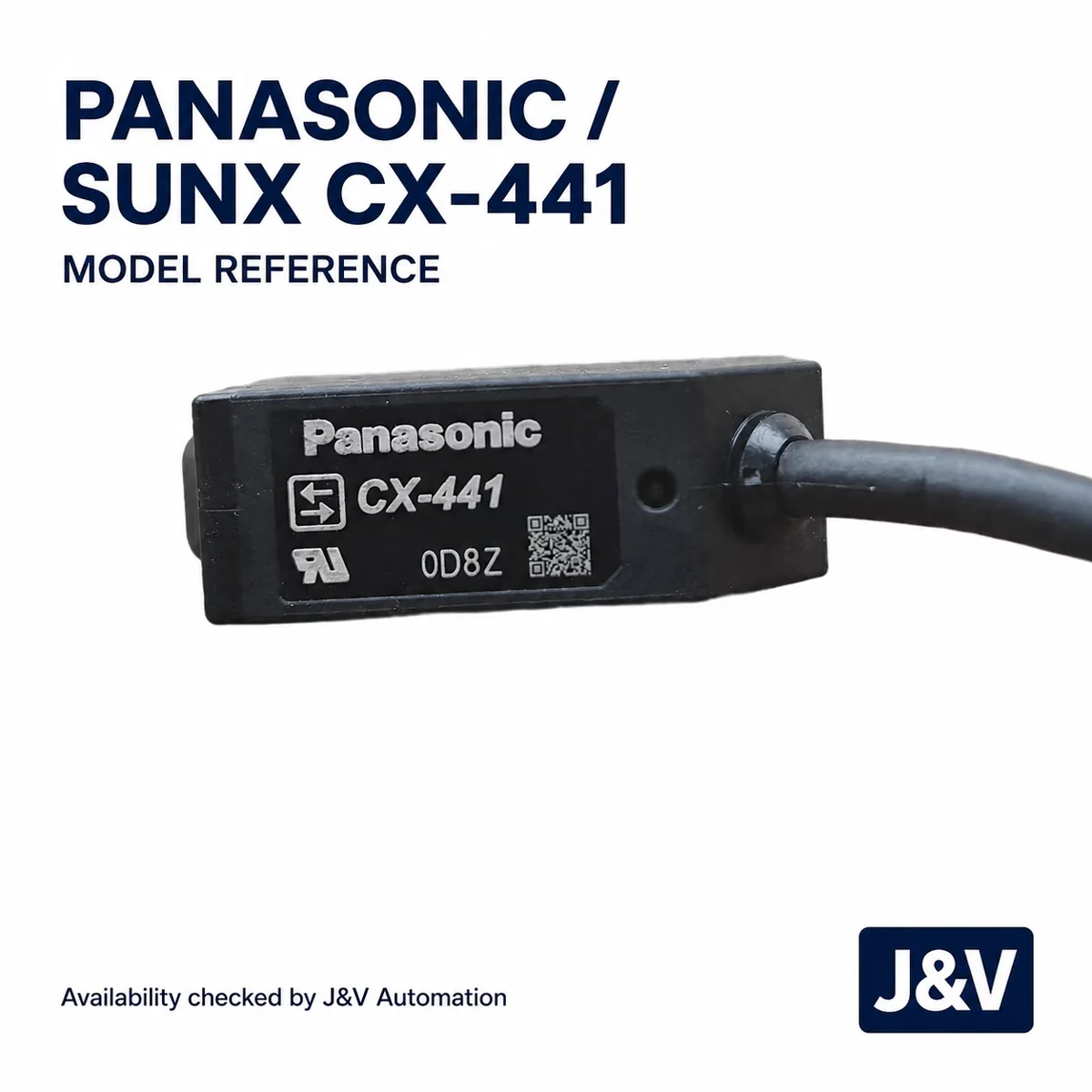

Warehouse, packing, model-check and application cards are sourcing references. Company registration links to legal business information; it is not an exact-product certificate or proof of current CX-441 stock.
Current CX-441 availability is checked before quotation.
The exact order packing method is confirmed before shipment.

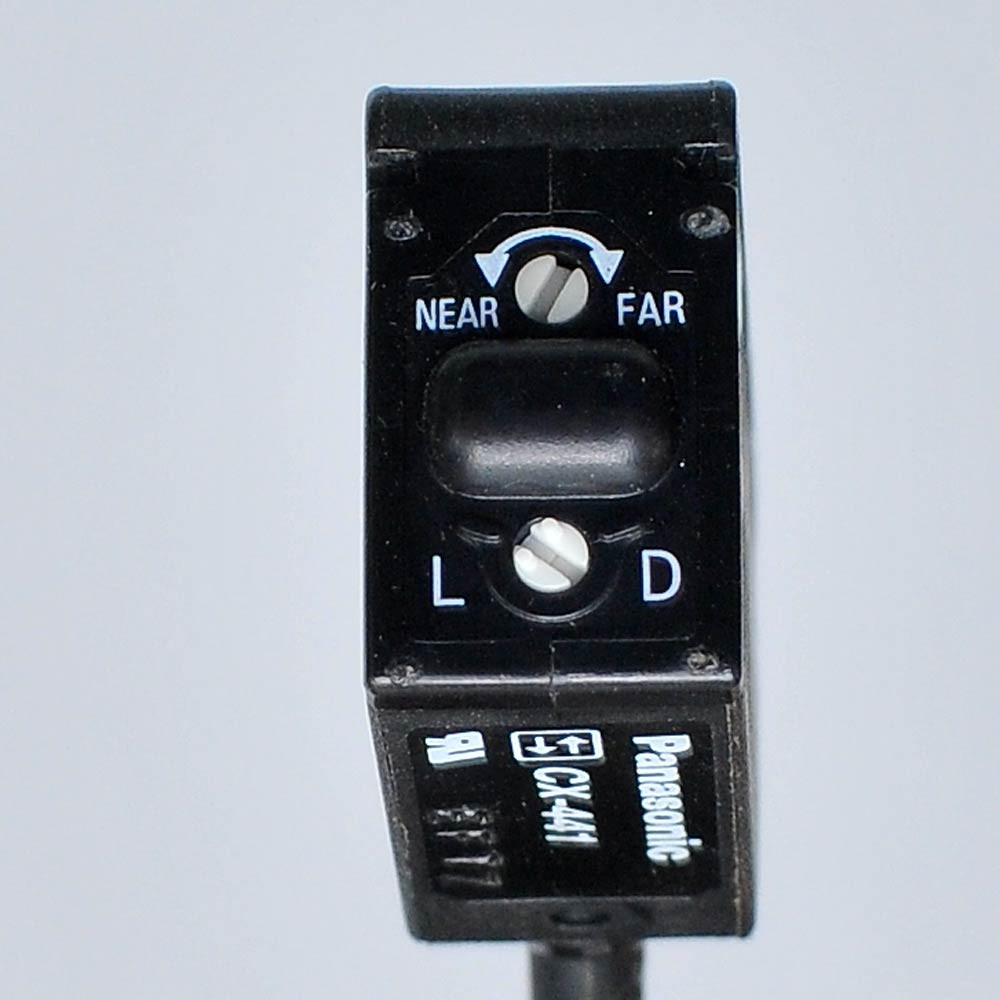

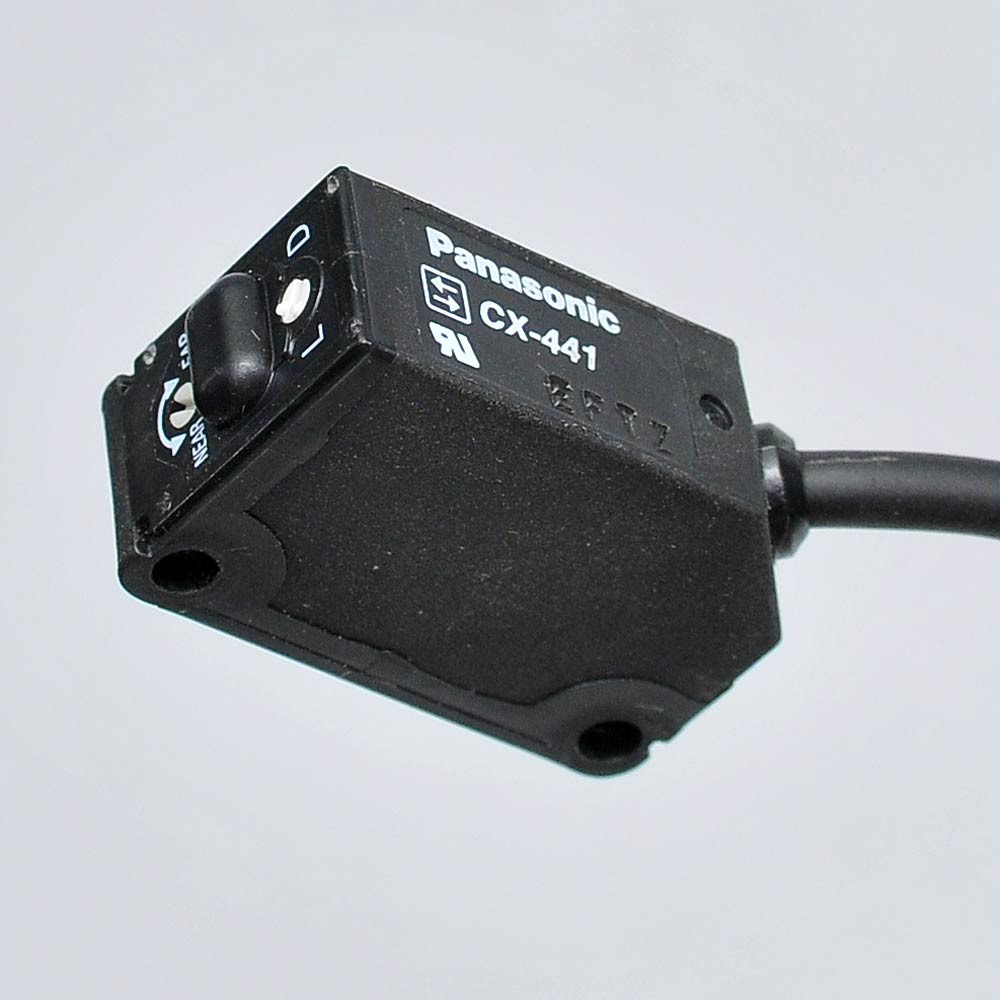

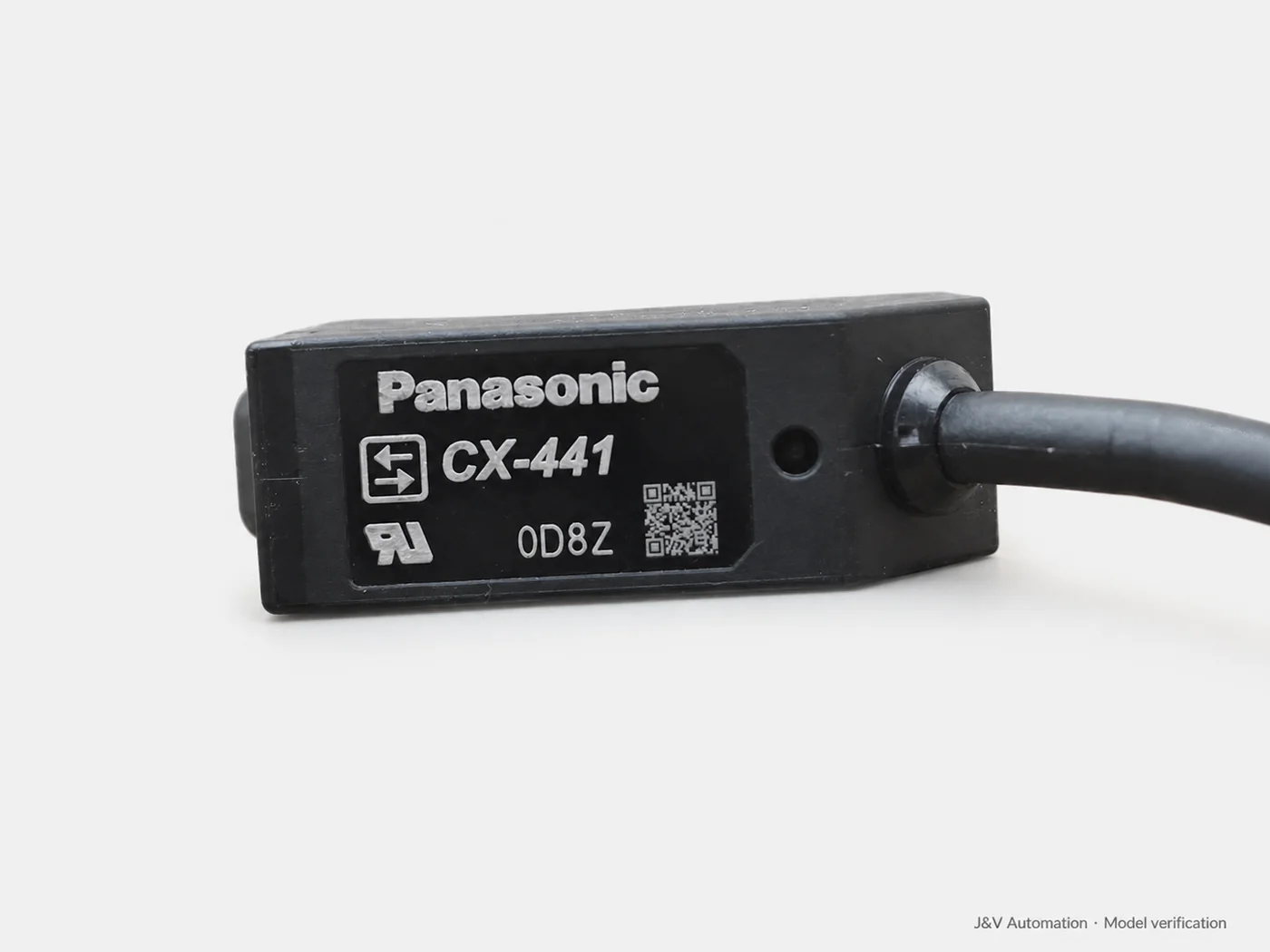

Use the label and sensing face to confirm the requested variant.
General industrial photoelectric sensing application reference.
Company registrationRegistered since 2017. View the legal name, registration code and business scope.
Checked the sourcing evidence?Send the model, quantity and delivery city for a price and lead-time check.
Ask Price & Lead Time on WhatsApp
| Parameter | Value |
|---|---|
| Model | CX-441 |
| Sensing method | Adjustable range reflective (small spot) |
| Sensing range | 2 to 50 mm |
| Output | NPN open-collector transistor |
| Operation mode | Detection-ON / Detection-OFF |
| Parameter | Value |
|---|---|
| Supply voltage | 12 to 24 V DC ±10% |
| Current consumption | 20 mA or less |
| Response time | 1 ms or less |
| Protection | IP67 |
| Cable | 4-core cable, 2 m |
CX-441 is a compact adjustable-range reflective photoelectric sensor with a small spot. J&V checks the exact suffix, output, cable, quantity and application before proposing an original or compatible supply route.
